1. Product Overview
Adam DYN-Info is the “dynamic-information” member of the ABB Eden DYN non-contact magnetic-coded safety sensor family. Together with the matching Eva actuator it forms a PL e / SIL 3 safety interlock for guards, doors and covers, replacing traditional mechanical switches.
2. Physical Build

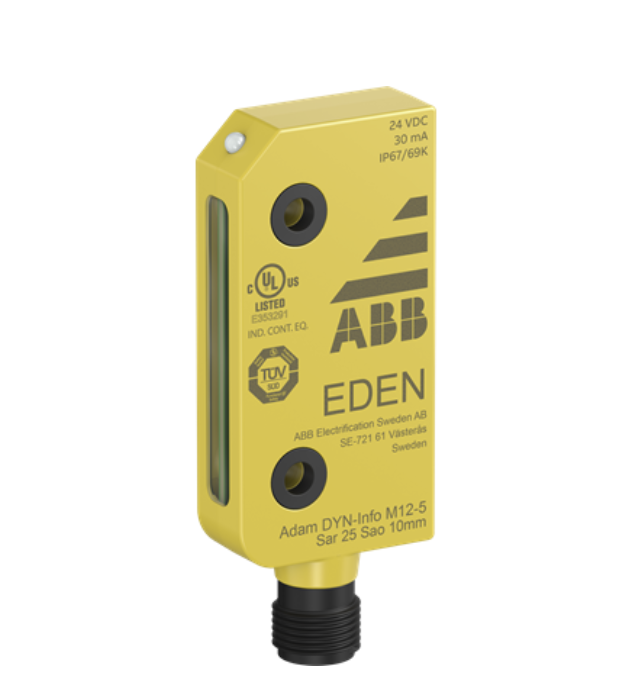

• Sensor: Adam DYN-Info – yellow PBT housing, IP67 / IP69K
• Actuator: Eva – grey PBT housing, available in universal or unique coding
• Connection: M12-5 male on sensor, female cable-side
Pin 1 Brown +24 V DC
Pin 2 White Dynamic input (DYN-in)
Pin 3 Blue 0 V
Pin 4 Black Dynamic output (DYN-out)
Pin 5 Grey Information output (non-safe)
3. Key Specs
• Supply: 24 V DC (SELV/PELV) ±15 % / –40 %
• Current draw: ≈ 30 mA @ 24 V
• Sensing range: 15 mm nominal, max 25 mm, hysteresis 1–2 mm
• Coding level: High (unique Eva) or low (universal Eva) per EN ISO 14119:2013
• Temperature: –40 … +70 °C
• Max switching frequency: 1 Hz
• Status LED: green/red indicates safe channel state
4. Functional Highlights
• Dynamic signal: 4 MHz digitally coded communication between Adam and Eva prevents bypass, cross-talk and tampering.
• Information output: Pin 5 provides a 24 V / 15 mA non-safe signal for PLC diagnostics.
• Daisy-chain capability: can be wired in series with other Eden DYN, Tina or Spot devices on Vital/Pluto safety PLCs while maintaining PL e/SIL 3 (up to 30 sensors per chain).
• Mounting: 30 mm × 75 mm × 12 mm footprint, ±5 mm mounting tolerance, screw or adhesive mounting.
5. Typical Applications
• Robot guards, CNC enclosures, packaging machine doors
• Zone safety chains with Pluto or Vital safety controllers
• Food machinery doors subject to wash-down (IP69K)
6. Ordering Codes
Adam DYN-Info M12-5: 2TLA020051R5100
Adam C DYN-Info M12-5 (chemical-resistant): 2TLA020051R5101
Eva actuator, universal code: 2TLA020046R0800
Eva actuator, unique code: 2TLA020046R0900
7. Wiring Example
Single Adam → Vital 1 safety relay (auto or manual reset)
Multiple Adams → Vital/Pluto daisy-chain, all sensors on one safety input channel
With these components, users can install and commission a safety interlock in under ten minutes while cutting panel wiring by more than 50 %.
